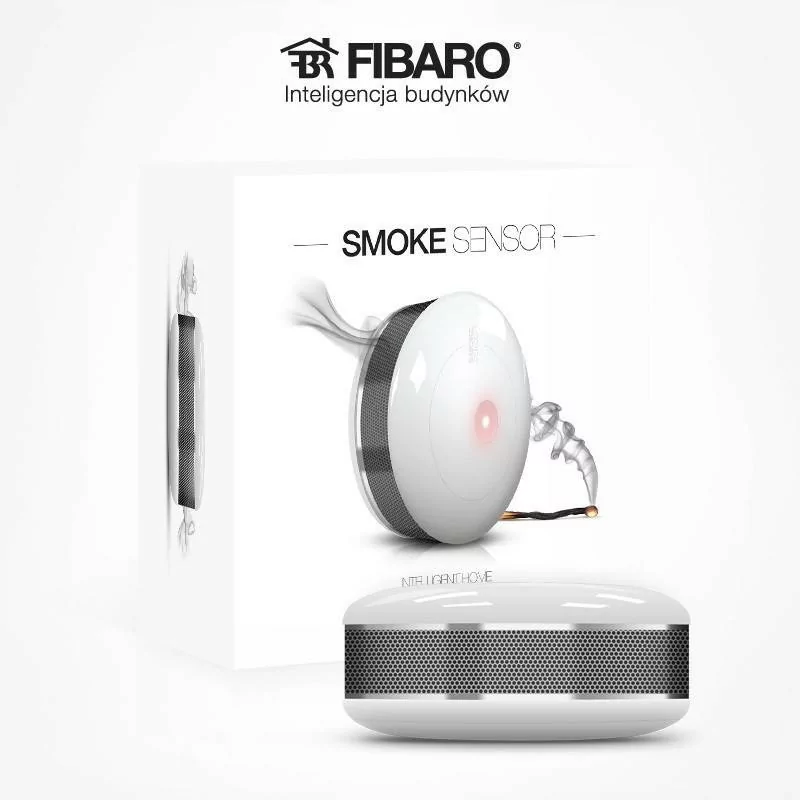

Fibaro Smoke Sensor FGSD-002

Description:

FIBARO Smoke Sensor is a high quality fire detector. In its creation FIBAR Group engineers took into account the fact that some materials can burn without emitting large amounts of smoke. Therefore FIBARO Smoke Sensor additionally installed temperature sensor. Thus, the unit responds to even a small amount of smoke or fire invitation - just a sharp jump in temperature or its increase to 60 ° C. The risk detected by the sensor immediately inform the warning sound and light signals RGB multi-color LED lighting. Each of these events is stored in the memory unit. By integrating the work of intelligence sensor system can also be programmed building a special stage, whereby in response to the danger of other domestic appliances and installations perform certain actions. In this way the risk of fire detection, for example, may result in an automatic raise the blinds, open the garage door, and the inclusion of emergency lighting, which paves the inmates escape route. Smart home can ensure our safety even during daily activities, and if we forget about the iron or oven is turned on, it will send us a notification on your smartphone or tablet, or simply turn off it for us. Smoke sensor is one of the devices that are installed in a visible place, which forced the combination of functionality and advanced technology with aesthetics and unique design, so that the sensor is ideally suited to modern interiors. Minimalist FIBARO Smoke Sensor housing is made ​​of heat-resistant plastic that protects the sensor from damage even at 200 ° C. Applied grille is made ​​of high quality material with a huge number of channels. Each laser is precisely cut out and shaped, so that the smoke is uniformly supplied to the device. Grille lets even the smallest amount thereof, which allows for quick response. FIBARO Smoke Sensor is completely maintenance-free and does not require complicated installation. You can install it anywhere and communicate wirelessly with the control panel, or if thick reinforced walls that are disturbing, connect the cable. The sensor can be integrated not only with devices Z-Wave, but also with any wired alarm system. It can be powered by a battery which ensures its operation even for 2.5 years, or connect it to a power supply of 12V or 24V. FIBARO Smoke Sensor is equipped with tamper protection, so that any interference with the cover or attempt to disassemble will be recorded and communicated to residents. The built-in sensor RGB LED alarm light also allows you to his work as a tester range of Z-Wave network.

Technical data:

• Supply voltage: 12 - 24 VDC • Battery :: CR123A • Maximum output current capacity (SMOKE NC, TAMP NC): 25mA • Maximum voltage outputs (SMOKE NC, TAMP NC): 24V (AC or DC) • Compliance with EU standards: EMC 2004/108 / EC; R & TTE Directive 199/5 / EC • Radio protocol: Z - Wave • Radio frequency: 868.4 MHz EU; 908.4 MHz US; ANZ 921.4 MHz;RU 869.2 MHz; • Range: up to 50 m in the open; up to 30 m in buildings (depending on building materials, layout and design of the building and the landscape) • Operating Temperature: 0 - 40 ° C • Temperature sensor Measuring range: -20 to 100 ° C • Temperature Sensor Measuring accuracy: 0,5 ° C (for range 0-40o C) • Dimensions (diameter x height): 65 x 28 mm

Additional information:

• Unique design, providing detection of even small amounts of smoke
• Detects smoke or temperature fluctuations
• Battery powered or DC,
• Communicates with the Z-Wave network or wired alarm system
• Enables wireless software upgrade.
