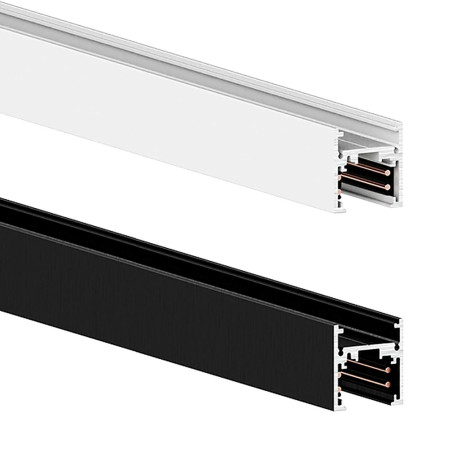

Multitrack magnetic track surface, pedant

Description:

Modern magnetic multitrack with a voltage of 48V. This voltage is safe for humans, so that the magnetic rails can also be used in places that are within easy reach. Available accessories and fittings allow you to create complex systems not only on the ceiling, but also allow for direct transition from the ceiling to the wall. Minimalist adapters magnetic when placed in a rail form an one slim line. In the case of surface-mounted version and a hanging rail profile remains the same, however different its method of preparation and the necessary mounting accessories (eg mounting links, steel cord). Dimmable Dali.

Technical informations:

• The length of 1m, 2m
• IP: 20
• White, black
• 48V power supply

Additional information:

• The simplest set of needs: rail, housing, feeding tips, tip and 48V power supply
• MULTIRACK system requires a separate central power supply, which can be located for example plasterboards, the ceiling or suspended in the outer box enclosing the power supply. Fixtures for multitrack system is available in two variants of control: On-Off (turn-off) and DALI
• The mounting holes are located within busbar at 500mm. Dimensions of the hole: 6x12mm. The recommended distance between any fasteners max. 1000mm.
• Busway maximum load is 30 kg / m.
• Maximum point load may not be greater than 5kg
• Safe voltage 48V within the busway makes MULITRACK even more flexible and opens up the possibility to create interior lighting not only on the ceiling but also on the walls.
• For questions or pricing, please contact: sklep@salonled.pl
