Technical Profile LARKO

Description:

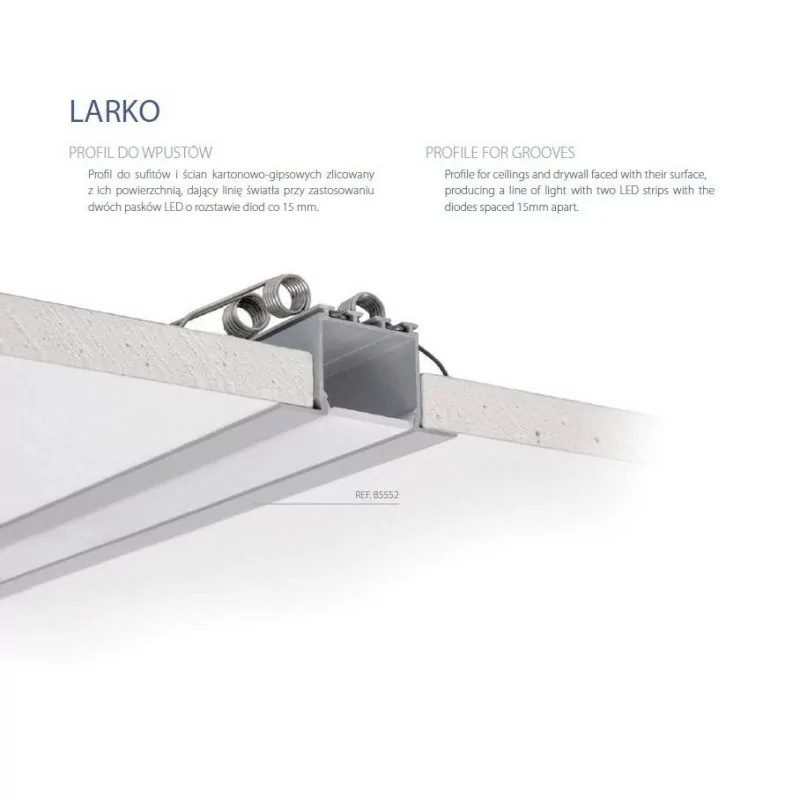

Aluminum profile Larko flush in ceilings and walls,mounted on a specially designed springs. Profile available in 2 widths, depending on the variant can be used with two (size S) or 4 (size L) ledowymi strips, characterized by easy installation, requires no painting or plastering after installation. Bottom profile Larko interfere with the supporting structure of the ceiling or the wall, projecting beyond the left plane. Installation across the ceiling structure requires making spacer "bars" drywall, allowing you to align the profile of the plate and in any direction mounted luminaire. Its height is designed so that the two strips LED diodes profile and densely spaced apart, with spacing of 15 mm at maximum and a milk casing shone uniform line of light without the effect of visible dots. The light source is one or four LED strips with a width of 8-10mm. Mounted to base plate CG is via spring assembly. During installation all profiles, fixtures require prior bring them to power cables. Power supplies may be placed loose on the left side of the ceiling or wall thickness. His will apply to the construction of lighting systems in apartments, homes, offices, businesses, etc.

Technical parameters:

• material: aluminum anodized
• standard length: 1 m, 2m
• Mounting: by means of springs into the plasterboard (not included)
• Cover: frosted included
• purpose: 1-4 LED strips of 10mm wide max
• Ending: Larko cap of plastic (not included)
• CE certificate
• Patent: patent rights

Additional information:

• The reaction was designed in such a way that the profile Larko with milk casing and the corresponding LED strip gave a uniform line of light
• recommended number of springs (installed in pairs) depending on the length of the profile: 6p-1m, 2m-10p
