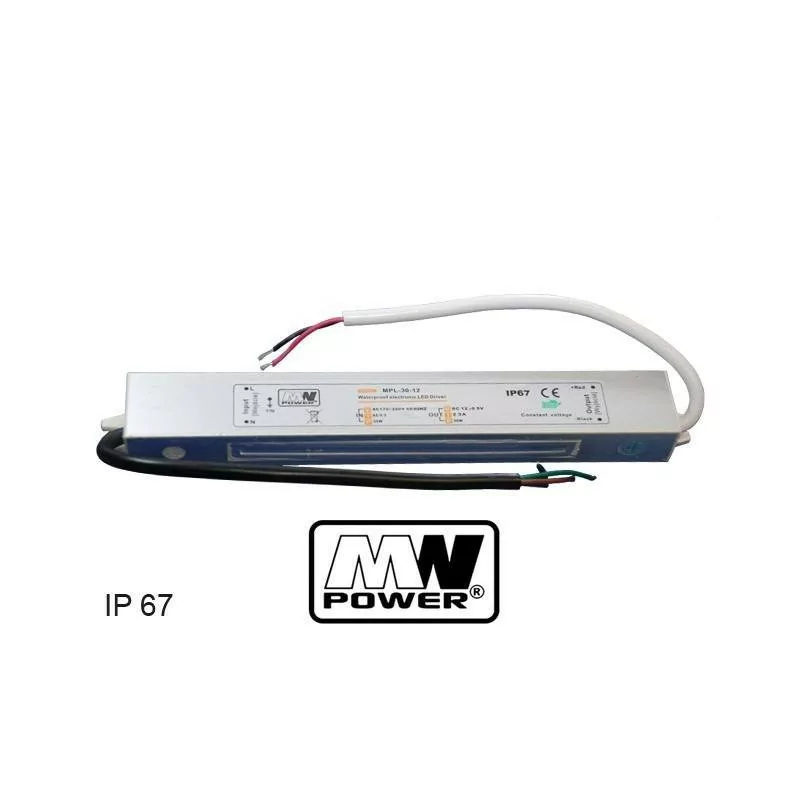

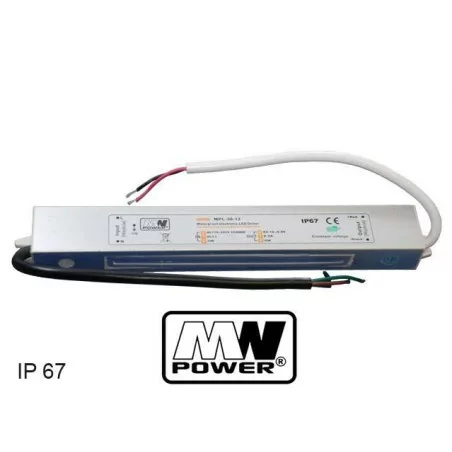

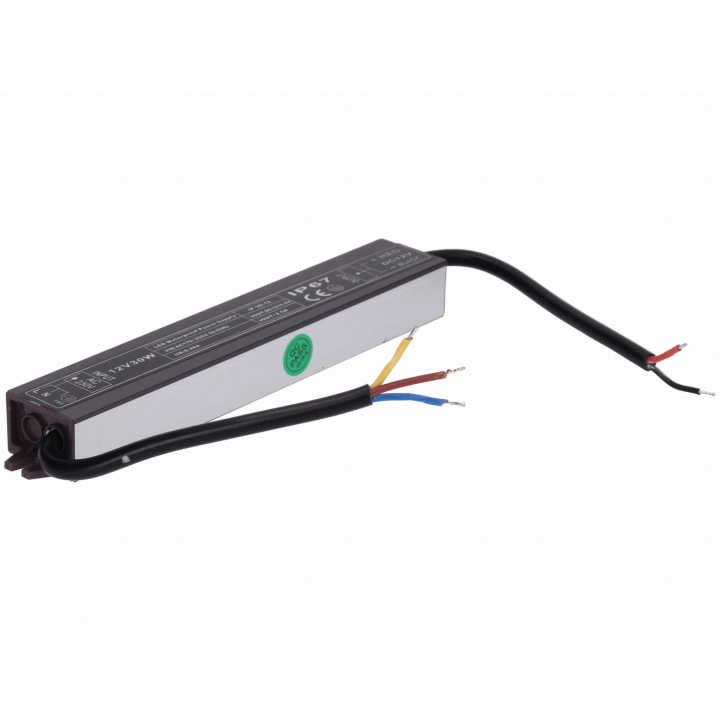

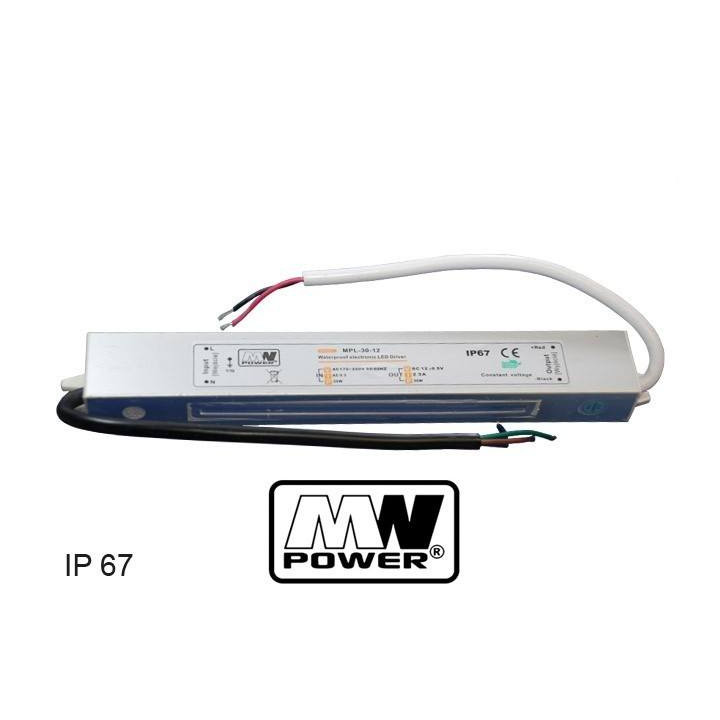

LED power supply MPL-30-12 30W 2.5A 12V DC Waterproof

30W waterproof LED power supply MW Power  MPL-30-12 30W 12V DC 2.5A

Description:

30W LED power supply MPL-30-12 is designed to power lighting based on LEDs. With the proper tightness is suitable for use in harsh weather conditions, in bathrooms, outdoors, in the dust like. Power Voltage LEDs are the most popular way power LED strips, strips, LED bulbs

Technical specifications:

• Model - MPL-30-12
• Power Output - 0-30W
• Class of tightness - IP67 (waterproof)
• Input voltage - 230V AC
• Output voltage - 12V DC
• Output current - 2.5 A
• Dimensions: Length 218mm, width 30mm, height 21mm
• Temperature range from -30 ° C to + 60 ° C
• Overload protection - 145 ~ 160% output nom.mocy
  automatic return to normal operation after the disappearance of overload
• Short circuit protection - Automatic return to normal operation after reducing the voltage at the output wires
• Over temperature protection - Cutting off the output voltage

• Certificates: RoHs, CE
• Weight: 0.25 kg

Additional information:

• MPL-30-12 power supply is designed to supply LED strip with a length not exceeding 6.2 meter (3528-SMD 60 LEDs / m)
• The power supply is in a very compact frame. The operating time is estimated at several thousand hours of work.
