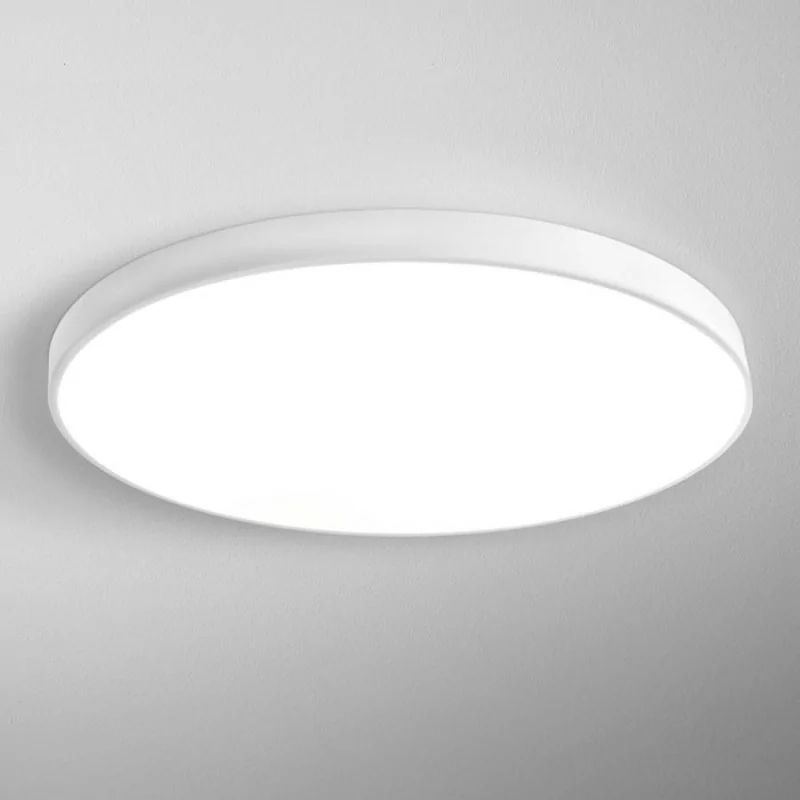

AQFORM BIG SIZE next round surface 40238
537.51 €
Description:
BIG SIZE next round surface 40238 are large lamps available in 3 sizes: 66cm, 96cm or 122cm, each time offering a smooth lighting surface, thanks to which they are best suited as general lighting in companies, office buildings, public facilities, schools or hospitals. Thanks to the use of LED modules, the lighting plane is completely uniform, it also allows for high energy efficiency and durability of use. BIG SIZE luminaires are equipped with high-quality shutters, thanks to which an optimal degree of light diffusion has been obtained with high luminous efficiency, and thus interior lighting with the BIG SIZE luminaire will ensure a gentle spread of light throughout the space. Moreover, the lowest profile on the market has been proposed for large lighting surfaces, thanks to which the luminaire, despite its large dimensions, does not overwhelm with its size, but rather gives the impression of a light, but strong structure. In addition to the size of the luminaire and the color of light, the BIG SIZE family includes round or square luminaires, suspended, surface-mounted or recessed, with 2 types of light source, because the BIG SIZE family is also available in a fluorescent version (FLUO ). BIG SIZE luminaires are available in 4 light colors to choose from: warm white 2700K - 3000K, natural white 4000K or mixed Tunable 2700K-6500K and 5 finishes: alu, white, black, gold, anthracite. surface mounted or recessed, with 2 types of light source, because the BIG SIZE family is also available in a fluorescent version (FLUO). BIG SIZE luminaires are available in 4 light colors to choose from: warm white 2700K - 3000K, natural white 4000K or mixed Tunable 2700K-6500K and 5 finishes: alu, white, black, gold, anthracite. surface mounted or recessed, with 2 types of light source, because the BIG SIZE family is also available in a fluorescent version (FLUO). BIG SIZE luminaires are available in 4 light colors to choose from: warm white 2700K - 3000K, natural white 4000K or mixed Tunable 2700K-6500K and 2 finishes: white, black.
Technical data:
- Light source included
- Power consumption:
45cm - 11W - 19.5W
66cm - 44.5W - 81.5W
96cm - 82W - 150W
122cm - 150.5W - 275.5W - Light color: WW-warm white 3000K, NW-neutral white, 4000K, 2700-6500K-Tunable white
- Luminous flux
3000K - (45cm) 1530m - 2670lm, (66cm) 3680lm - 6270lm, (96cm) 6810lm - 11580lm, (122cm) 12480lm - 21230lm
4000K - (45cm) 1690lm - 2960lm, (66cm) 3680lm - 6270lm, (96cm) 6810lm - 11580lm, (122cm) 12480lm - 21230lm
WW 3000K version: 45cm- 66cm-4070min-5920max lm, 96cm-7520min-10940max lm, 122cm-13800min-20060max lm - The dimensions of the luminaire are 66cm / 96cm / 122cm in diameter
- The height of the luminaire is 11cm
- IP20 tightness class
- Voltage 230V
- Aluminum material
- Color, black, white
- Surface mounting method
- Producer: Aquaform
- Warranty: 5 years
Additional information:
- built-in 350mA LED power supply
- built-in LED modules that can be replaced
- it is possible to make a luminaire in any color from the RAL palette and a dimmable version at an additional cost
- Dimming options: DALI, switchDIM, AQsmart
- Temperature 2700K-6500K Tunable white, only available in dimmable version
- The product is prepared on an individual order. According to the store regulations, this type of goods is not returnable
- Luminaires have 4 ranges of power and luminous flux. Does not apply to Tunable-White versio
- Reference
- 40238-M962-D9-DA-01
