AQFORM QRLED move spot 12528

Description:

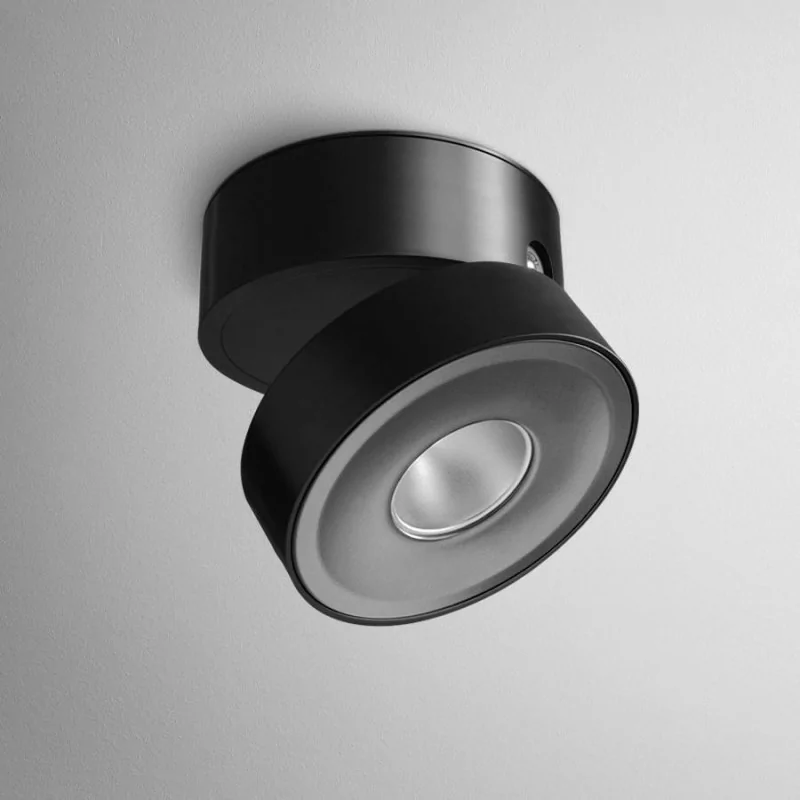

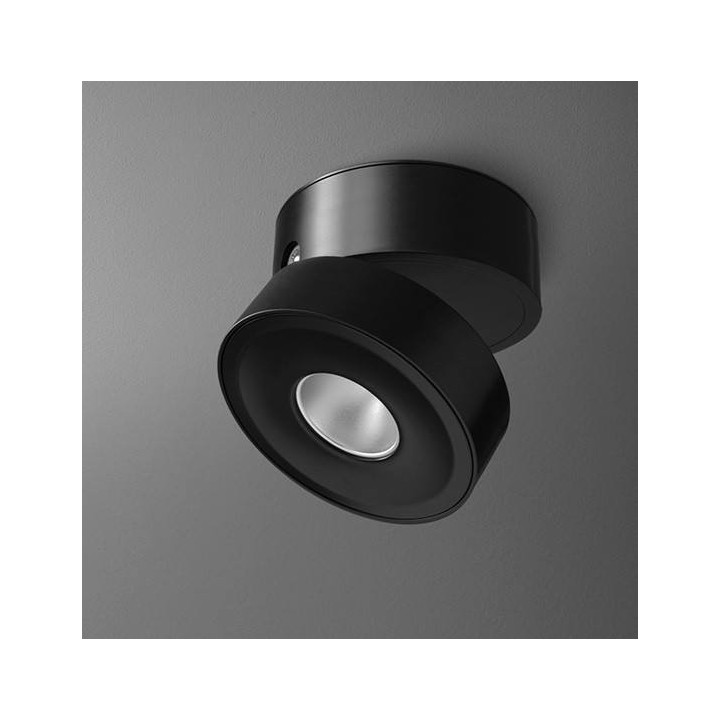

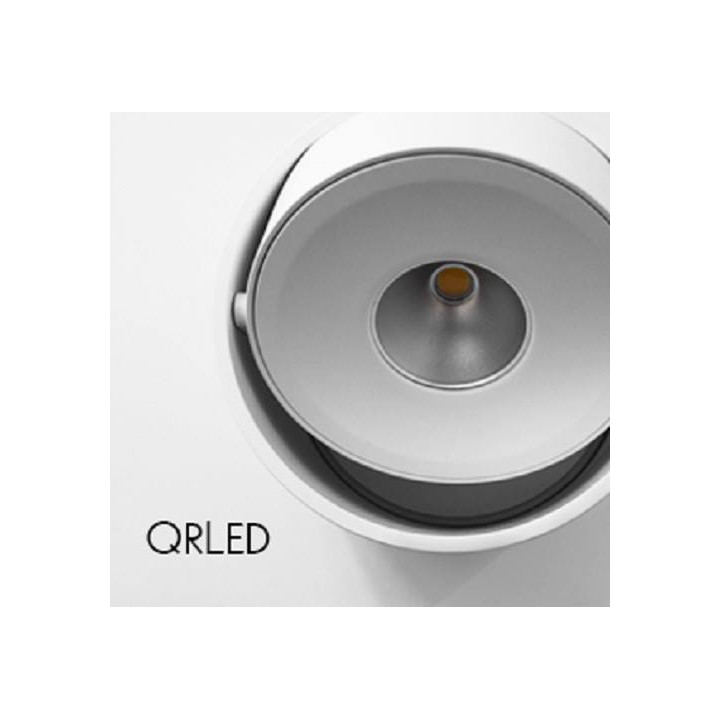

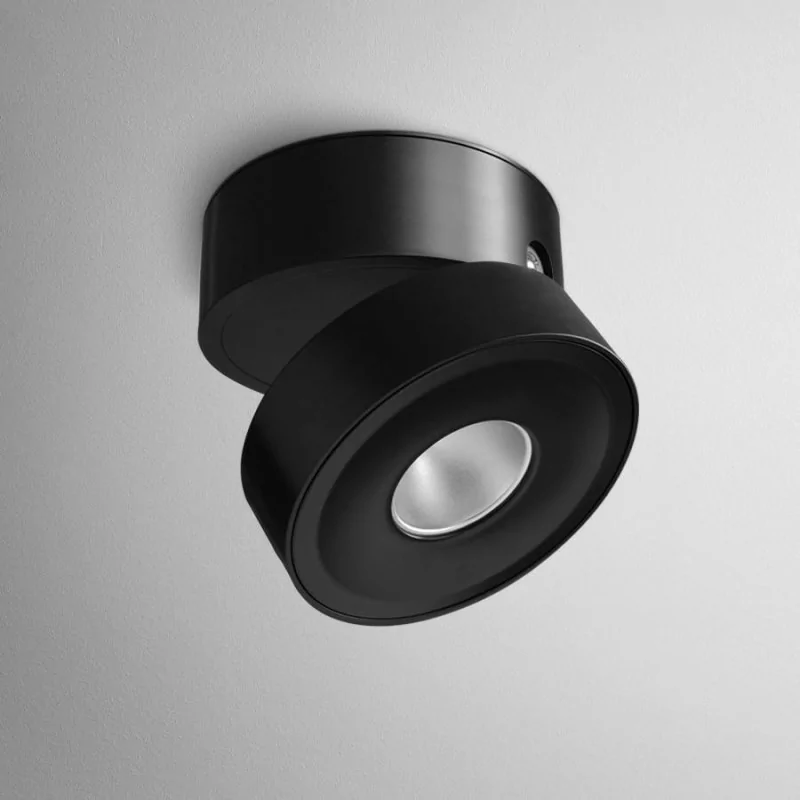

AQFORM QRLED move reflector 12528 is a modern ceiling reflector with the possibility of tilting up to 90º and rotating around its axis. This version includes a factory-built QRLED module, a modern solution combining the advantages of an integrated luminaire with a replaceable light source. Because QRLED luminaires are produced with a view to using a specific, selected module, they have perfectly adapted technical parameters. However, the QRLED module itself has been designed so that it is easy and quick to replace it directly at the place where the luminaires are mounted. QRLED modules are made of high quality polycarbonate and ABS composite, and aluminum. The quality of the materials used, together with the small diameter of the reflector (Φ50) make the QRLED luminaires elegant and minimalist. As standard, the fittings are available in 3 color temperatures: warm 2700K / 3000K or natural 4000K.

Technical data:

• LED light source, integrated
• Luminaire power: 6W or 9W
• Light color: warm 2700K / 3000K, natural white 4000K
• Luminous flux: 6W: 2700K - 730lm, 3000K - 770lm, 4000K - 780lm

• Luminous flux: 9W: 2700K - 1000lm, 3000K - 1050lm, 4000K - 1070lm

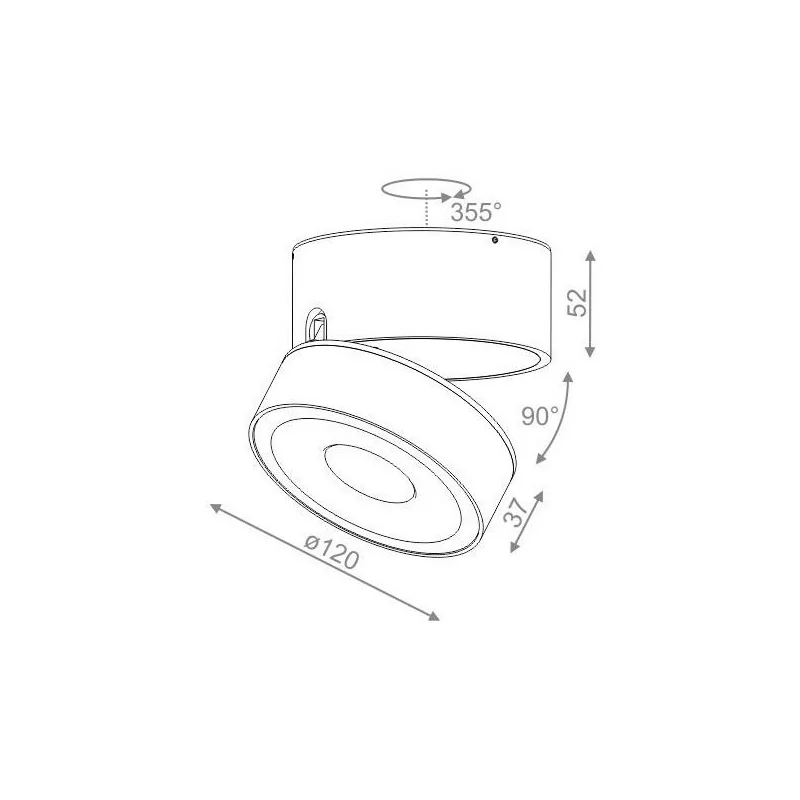

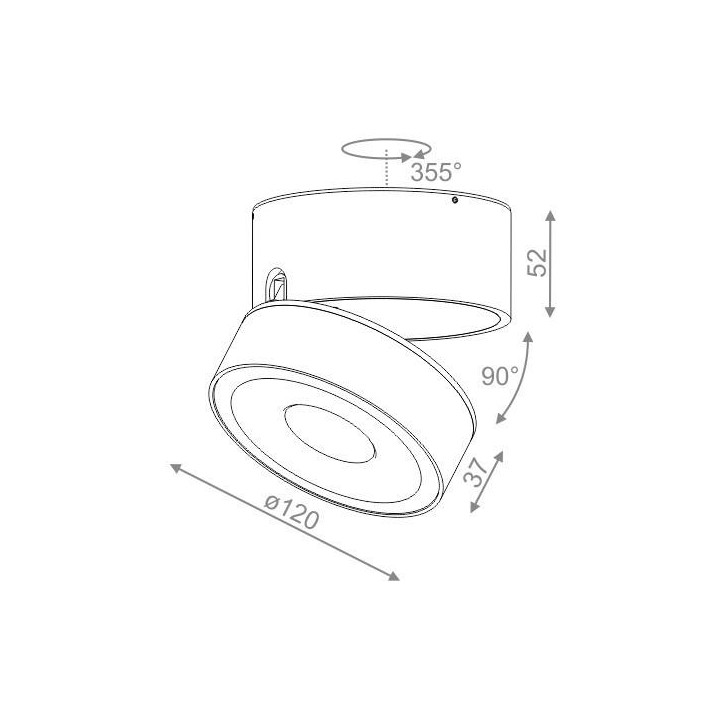

• Luminaire dimensions: see technical drawing
• Degree of protection IP20
• 230V power supply
• Aluminum material

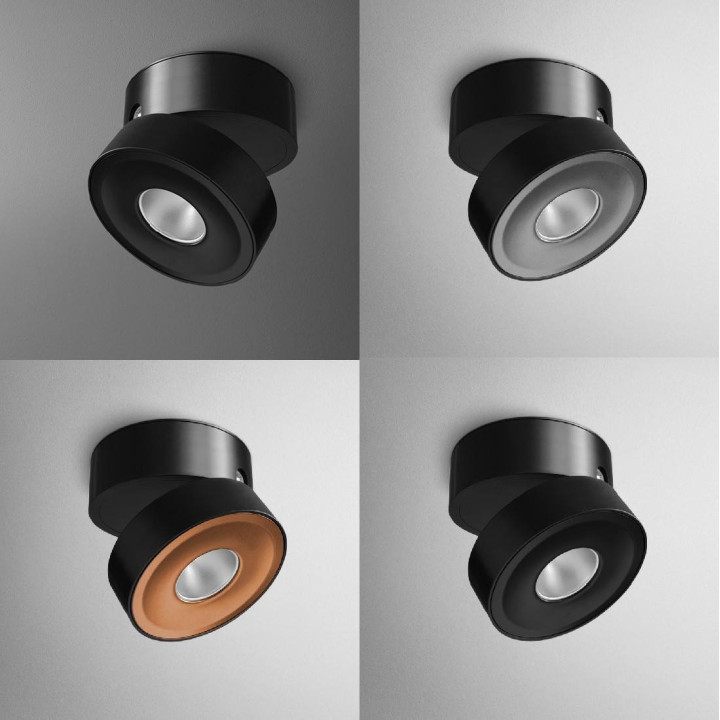

• Black, white, gray, gold,
• Surface mounting method
• Producer: Aquaform
• Warranty: 5 years
