AQUAFORM MIXLINE LED system surface
Description:

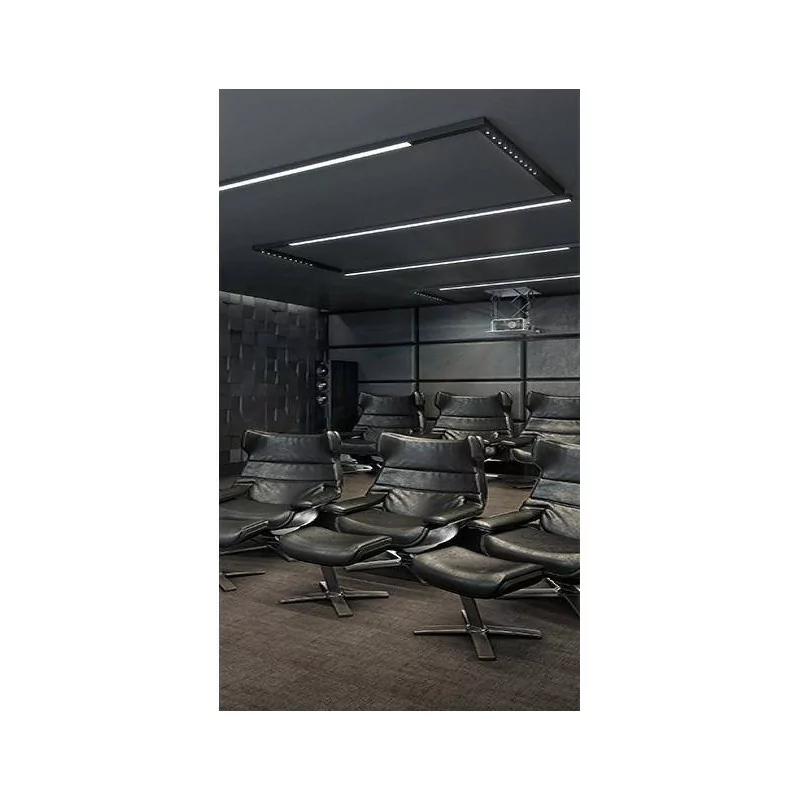

AQUAFORM MIXLINE Surface-mounted LED system allows to configure an individual lamp by combining the segments and luminous power in lengths to 220cm. Sections can be connected in three ways: directly, or angularly in the position of wall-ceiling. The whole forms a surface-mounted LED lamp, which can consist of the components comprising two different light sources: a modular stacked lenses which minimizes glare and lighting milk line hidden behind the iris. MIXLINE lamp LED light offers high-quality lighting with a long time and high color rendering CRI> 80. Adding to the different angles of illumination lamp (narrow-angle of 25 ° and a wide angle 40 ° or 60 °) We get a universal proposition, with which you can design both accent lighting, decorative lighting and how functional general lighting. The relatively narrow body feels light and minimalist in form. The lamp has a built-in LED lighting with 3 light colors to choose from: 2700K warm white or 3000K and 4000K Natural White, housing is available in 7 colors. MIXLINE LED luminaires are 3 ways of installation: as a surface-mounted lamps, recessed lighting and pendant lamps.The system requires the use of several components. Configuration of the housing includes a single module. In the valuation, please contact e-mail from our shop. To obtain pricing, please indicate the quantity of luminaires, light color, color, framing or sending finished project, which will be made for the valuation.
Technical data:
- Integrated LED light source
- 230V input power
- Power: Depends on the length of
- Light color: white heat 2700K, 3000K warm white, neutral white 4000K
- 5W Luminous flux: 535lm 2700K-, 3000K- 610lm, 650lm 4000K-
- 6.5 W Luminous flux: 860lm 2700K-, 3000K- 900lm, 930lm 4000K-
- 10W Luminous flux: 1070lm-2700K, 3000K-1220lm, 4000K-1300lm
- 13W Luminous flux: 1720lm-2700K, 3000K-1810lm, 4000K-1870lm
- 15W Luminous flux: 1605lm-2700K, 3000K-1830lm, 4000K-1950lm
- 19,5W luminous flux: 2580lm-2700K, 3000K-2720lm, 4000K-2800lm
- 20W Luminous flux: 2140lm-2700K, 3000K-2440lm, 4000K-2600lm
- 26W Luminous flux: 3040lm-2700K, 3000K-3620lm, 4000K-3740lm
- The length and strength:
29cm - 5W
32cm - 6.5 W
54cm - 10W
55cm - 5W
60cm - 13W
79cm - 15W
88cm - 19,5W
104cm- 20W
116cm - 26W - Angle: 25 °, 40 ° or 60 °
- Alu colors, black, white, red, cream, gold, anthracite
- Mounting Surface
- The manufacturer Aquaform
- 5 year warranty
- CRI> 80
Additional information:
- Built-in LED driver
- Dimming options
- Light source included
- The product prepared in the individual order. According to the regulations of this type of store goods are non-refundable.
- Reference
- 70089-L827-S3-00-01
