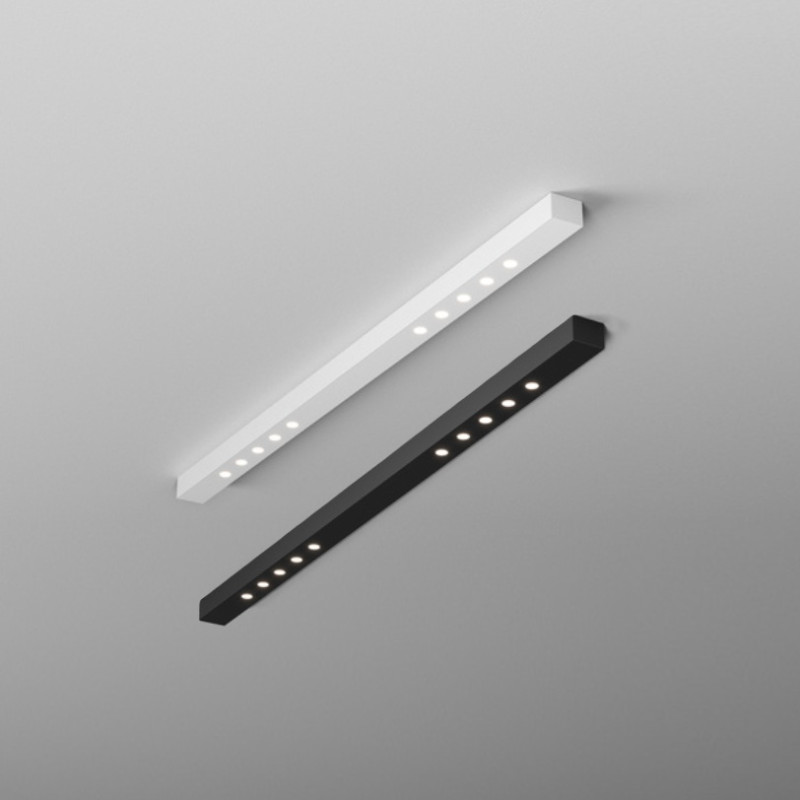

AQFORM LENS LINE section LED surface 96cm, 149cm, 202cm

Description:

AQFORM LENS LINE section LED surface mounted 40260, 40262, 40264 is an oblong LED lamp that has no shutter, only modularly arranged lenses, which minimizes glare. The LENS LINE section lamp is characterized by the division of diodes into sections every 5pcs and offers high-quality LED light with long lighting time (> 60,000h is 7 years of lighting 24/7) and high color rendering CRI> 90. Linear lighting works best when illuminating flat, rectangular surfaces such as desks, kitchen islands or passageways. Because the  lenses and LEDs in LENS LINE luminaires are arranged in a linear manner,  these luminaires are also very well suited as table lamps or general lighting. The entire Lens Line family has been designed based on a lighting module consisting of 5 LEDs, thanks to which they can be easily adapted to the dimensions of the illuminated interior. Lighting design with the LENS LINE LED collection makes it easy to choose between 2 power and lighting variants: the weaker and the stronger version. LENS LINE LED luminaires come in 4 ways of installation: as  surface-mounted lamps, recessed lighting, sconces and hanging lamps .  Adding to it various lighting angles of the lamp ( narrow angle 26 ° or wide angle 54 ° ) we will get a universal proposal with which you can design  accent lighting, decorative lighting as well as functional general lighting. The slim shape with a smooth surface without screws is further emphasized by the small diameter of the reflectors (<14mm). The relatively narrow body gives the impression of light and minimalist in form. The lamp has a built-in LED lighting with 2 light colors to choose from: warm white 2700K, 3000K or natural white 4000K, the housing is available in 6 colors and 3 different lengths: 96cm, 149cm, 202cm. In addition, each lamp length is available in two power versions: weaker and stronger, which allows it to be adapted to the needs of each client. Lamps are designed for use in private as well as commercial, office or hotel buildings.

Technical data:

• LED light source integrated
• 230V input power supply
• The power depends on the length:
  96cm- (6.5W or 14W)
  149cm- (10W or 21W)
  202cm- (13.5W or 28W)
• Light color: 2700K, 3000K warm white, 4000K neutral white
• Light beam warm white 2700K: 6.5W-660lm, 10W-990lm, 13.5W-1330lm, 14W-1240lm, 21W-1870lm, 28W-2490lm
• Light beam warm white 3000K: 6.5W-720lm, 10W-1090lm, 13.5W-1460lm, 14W-1370lm, 21W-2060lm, 28W-2750lm
• Natural white light beam 4000K: 6.5W-800lm, 10W-1200lm, 13.5W-1610lm, 14W-1500lm, 21W-2250lm, 28W-3010lm
• Length 96cm, 149cm, 202cm
• Profile dimensions 4.2cm x 3.2cm
• Viewing angle: 26 ° or 54 °
• Black, white
• Mounting method surface-mounted ceiling
• Producer Aquaform
• 5 years warranty
• CRI> 90
