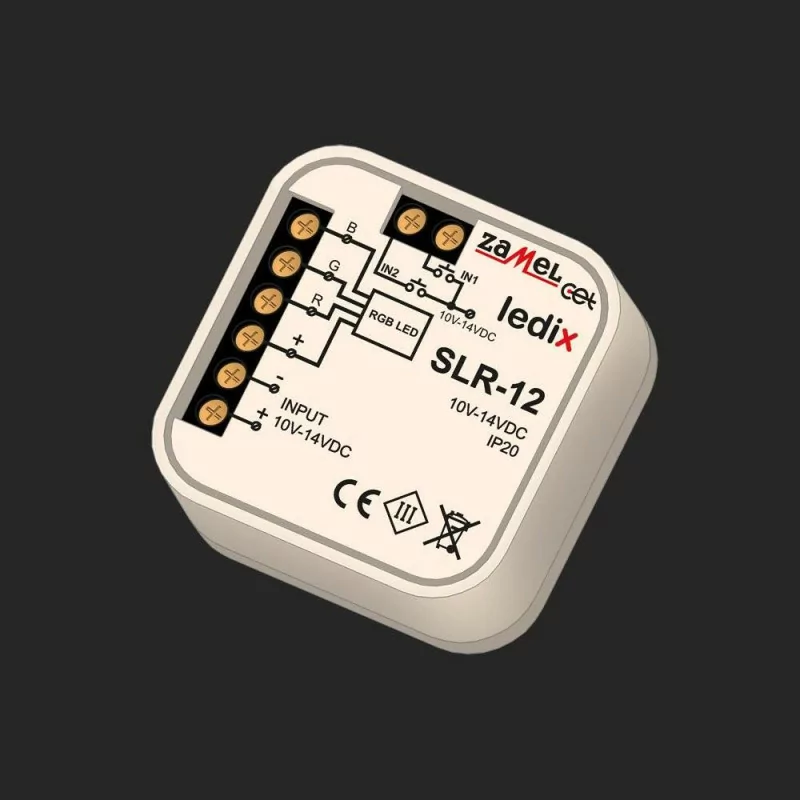

driver Ledix SLR-12 RGB luminaires Ledix

Description:

SLR-12 is a wired controller RGB LED Zamel Polish CET. It is designed to control RGB LEDs in a common "+" (luminaries standard I Ledix RGB) 10-14V DC supply voltage. Control is carried out from the typical buttons normally open (bell) or connectors rolecianych. The controller implements 3 programs control RGB LEDs: color selection (1 of 10 colors defined by the manufacturer), brightening / dimming and smooth automatic color change (FLOATING). It has very low power consumption during standby.

Technical data:

• Rated voltage: 10-14V DC

• Nominal power consumption: 0,06W
• Number of channels: 3
• Maximum load current: 2.5A
• The control signal: PWM 9-bit

• Implemented functions: on / off, 1 of 10 preset colors, brightening / dimming

• The implemented programs: autoamtyczna smooth change of color (FLOATING)

• Steps (FLOATING and STROBE): 10 (50 min)

• Controls: buttons NO

• Terminals for control: I1, I2,

• Number of terminals: 8
• Section of connecting cables: to 2,5mm²

• Operating temperature: -10 - + 50 ° C

• Dimensions: 4,75cm (height) x 4,75cm (length), 2cm (width)

• Mounting: mounting box with a diameter of 6cm

• Degree of protection: IP20
• Manufacturer: Zamel CET
• Warranty: 2 years


Additional information:

Rated output voltage (10 to 14 V DC) and the rated output power must be matched to the LED light source connected to the controller
