LEDIX Power Supply Unit ZNM-08-14 14V DC/8W

26.14 €

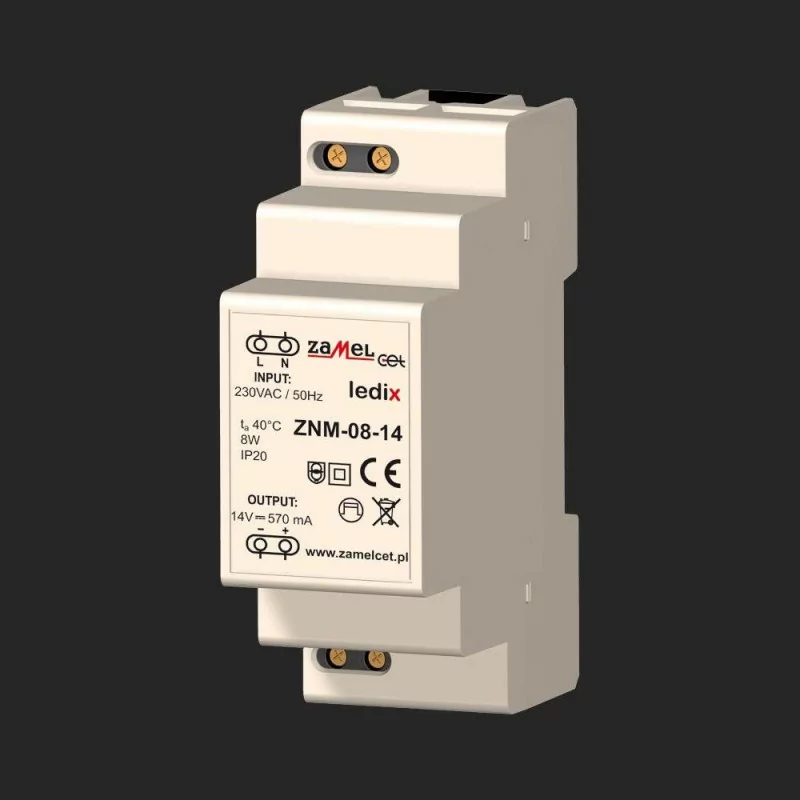

Power Supply Unit ZNM-08-14 14V DC/8W for luminaires Ledix

Quantity

Product available

Availability: 8-15 days

Do you need help or details about our offer?
Call us (+48) 694-000-777, (+48) 799-220-777
between 8 a.m. - 5 p.m. or Mail to us
We respond to e-mails between 8:00 and 23:00
flight We deliver shipments using Fedex or DPD
place There is a possibility of personal collection
check_circle_outline prepayment foreign - 25euro, in Poland 20pln
info For orders over PLN 1000pln, delivery in Poland is FREE

Description:

ZNM-08-14 14V DC / 8W is a professional modular switching power supply with output voltage 14V DC nominal power 8W Polish company Zamel CET. It is designed to work with products Ledix series - fixtures, controllers or radio receivers supplied 14V DC voltage. The device is made in the housing 2-modular and is designed for mounting on TH-35. The power supply is characterized by efficiency at 79%, and high stability of output voltage with changes in input voltage or load changes. It has short circuit and overload increase safety.

Technical data:

Nominal output voltage: 14V DC
Rated output current: 0.57
Rated output power: 8W
Nominal input voltage: 230V AC
Rated frequency: 50Hz
Efficiency: 79-80%
Power consumption (standby): 0.25 W
Starting current: 20A
Protections: short circuit, overload
Operating temperature: -10 - + 50 ° C
Housing dimensions: 2 modules (6,6cm x 9cm x 3.5cm)
Mounting: in switchboards on rail TH-35
Degree of protection: IP20
Manufacturer: Zamel CET
Warranty: 2 years

Additional information:

The minimum distance from other devices - 10mm
In the absence of forced cooling power downloader should be reduced to 80% of rated power

Reference: LDX10000017

Producent:	Zamel CET - Ledix
Logo:
Short description:
Address:	43-200, Pszczyna ul. Zielona 27, Polska
Person:	ZAMEL Sp. z o. o.
Phone:	+48 (32) 210 46 65
Email:	marketing@zamel.pl
