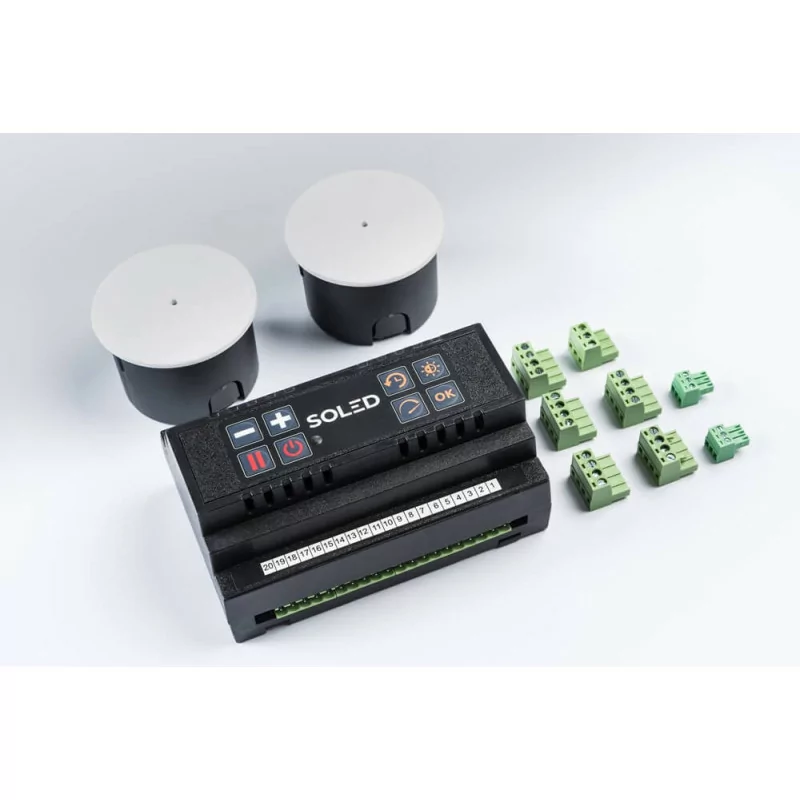

LED SCR-2 Motion sensor stair for illuminating

Description:

Intelligent motion sensor designed for LED stair lighting. The operation of the SCR-2 sensor is to turn on the following lights when ascending or descending (SCR-1 turns them on at once). The ability to set the lighting time within 5-120 seconds and brightness (lighter / darker). The narrow sensitivity angle causes the lighting of the stairs to turn on after climbing the step, and not when walking next to the stairs. In the event that one person from above and the other from below enters the stairs, the lighting turns on in both directions. The controller has an easy-to-use keyboard that allows you to adjust the product to a specific implementation or needs. We can configure: brightness, steps lighting time and steps' time out. An additional button is a pause, which allows for continuous lighting mode.

Technical data:

• small dimensions of detectors
• stairs width without restrictions
• the detector can be placed at any height (it is best to place it 10-15cm above the floor, at foot height)
• very simple assembly
• tactile, modern panel with an aesthetic appearance
• stair lighting only when climbing / descending, not when passing by (stairs are intercepted when entering stairs)
• smooth and subtle switching on and off the lighting - does not distract the attention of others
• regulation of lighting time - determined individually depending on the needs
• several levels of adjusting the brightness of the stair lighting (brightness affects the speed of lighting switching in proportion)
• compatibility with stair sets from our store
• continuous lighting function (detectors are switched off)
• setting the light intensity (lighter / darker)
• adjustable lighting time from 5 to 120s
• max. 200W load
• operating voltage: 12V-24V
• max number of steps 20 degrees after 1m (max 10W 1 step)


Additional information:

We have a choice of 3 types of motion detector housings adapted to the particular installation:

1. white flush-mounted detector mounted in a 60mm electrical box - (diameter 7.3cm, thickness 4.8cm
2. surface-mounted detector - light gray (height 4.6 cm x width 3.1 cm x thickness 1.6 cm)
3. detector installed in the baluster / post - round, black (diameter 3.8 cm, thickness 1.6 cm)

Elements of the set:
